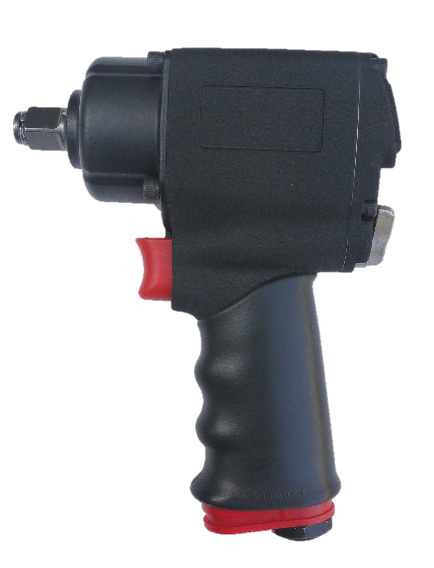

3/4"Ultra&Compact Air Impact Wrench/Handle Exhaust

¡@

Item No.: CH051324-RG

3/4"Ultra&Compact Air Impact Wrench/Handle Exhaust

Feature:

* With handle cover

* With injection hole design patent! Repair air tools easily.

Specification:

* Square drive: 3/4”dr.

* Bolt capacity: 23mm

* Max. torque: 1100ft.lb(1491Nm)

* Net weight: 1.9kg(4.18LB)

* Length: 146mm

* Air consumption: 0.2 m³/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 2.8m/s²

* Speed: 9,000rpm

* Mechanism: Twin Hammer

¡@

¡@

¡@

¡@

¡@

¡@
