3/4"Ultra&Compact Air Impact Wrench







Item No.: CH051324-R

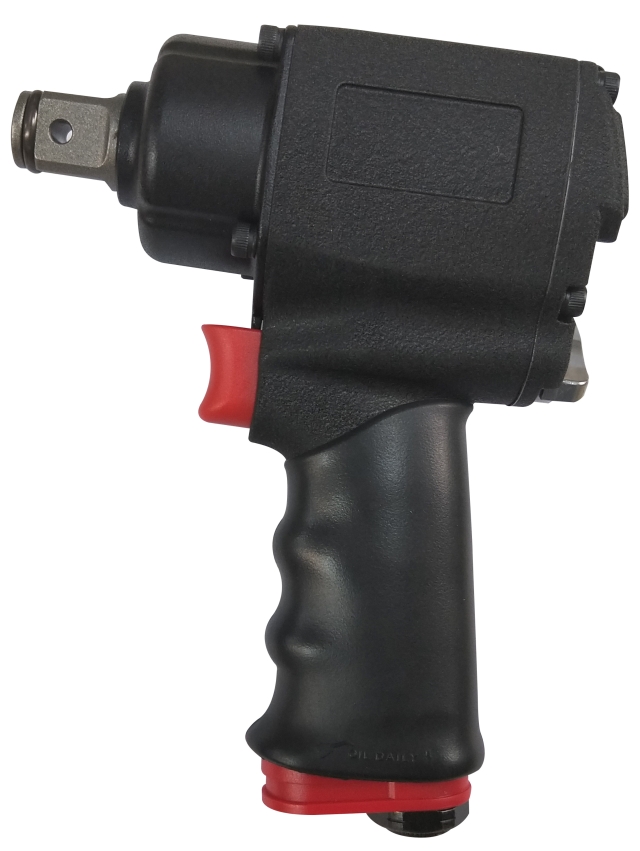

3/4"Ultra&Compact Air Impact Wrench



Specification:

* Square Drive(inch)3/4"

* Bolt Capacity(mm)23

* Working Torque ft.lb(Nm)200-900(271-1220)

* Max. Torque ft.lb(Nm)1100(1491)

* Speed (RPM)9000

* Net Weight (Kg/Lb)1.9/4.18

* Length(mm)146

* Air Cons(m³/min)0.2

* Air InIet(inch)1/4"

* Hose Size(mm)10

* Sound Pressure(dBA)94

* Vibration(m/S²)2.8

* Mechanism: Twin Hammer



* Other option: CH051324-RQ (with muffler)
