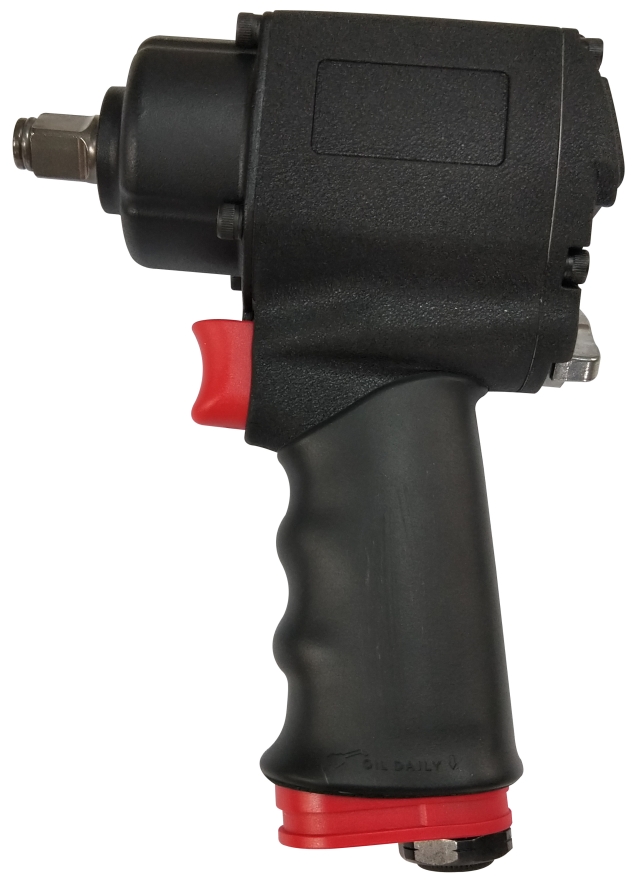

1/2"Ultra&Compact Air Impact Wrench







Item No.: CH051323

1/2"Ultra&Compact Air Impact Wrench



Specification:

* Square Drive(inch) : 1/2"

* Bolt Capacity(mm) : 23

* Working Torque ft.lb(Nm) : 200-800(271-1085)

* Max. Torque ft.lb(Nm) : 1000(1356)

* Speed (RPM) : 9000

* Net Weight (Kg/Lb) : 1.8/3.96

* Length(mm) : 141

* Air Cons(m³/min) : 0.2

* Air InIet(inch)1/4"

* Hose Size(mm) : 10

* Sound Pressure(dBA) : 94

* Vibration(m/S²): 2.8
* Mechanism: Twin Hammer



* Other option: CH051323-Q (with muffler)
