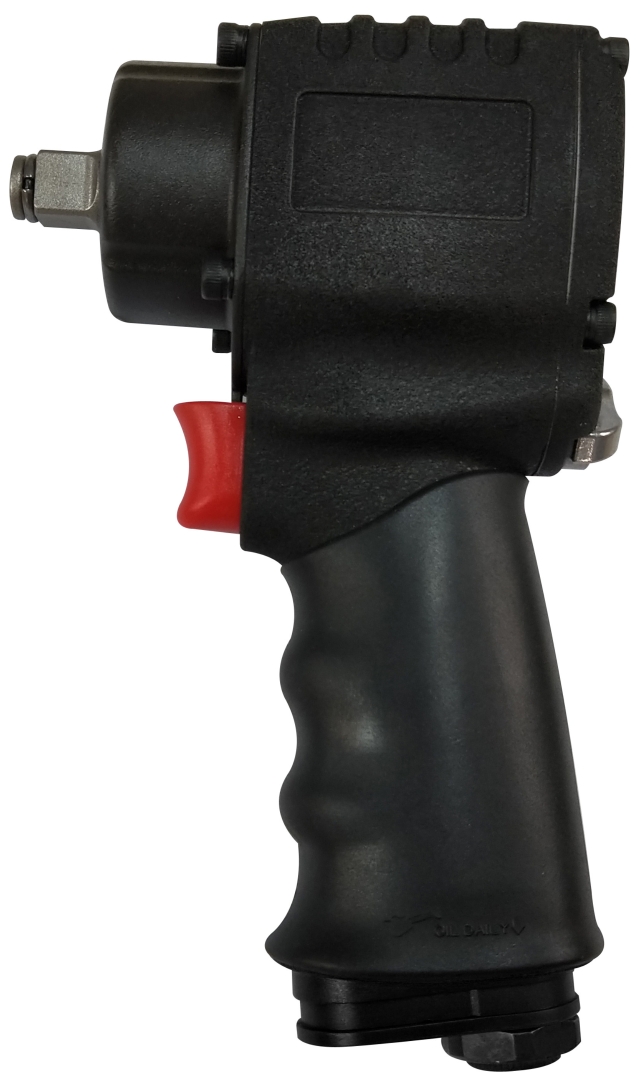

1/2”Dr. Super Duty Air Impact Wrench





Item No.: CH051320-T

1/2”Dr. Super Duty Air Impact Wrench



Specification:

* Square Drive(inch)1/2"

* Bolt Capacity(mm)16

* Working Torque ft.lb(Nm)180-450(244-610)

* Max. Torque ft.lb(Nm)750(1017)

* Speed (RPM)10000

* Net Weight (Kg/Lb)1.5/3.3

* Length(mm)113

* Air Cons(m³/min)0.21

* Air InIet(inch)1/4"

* Hose Size(mm)10

* Sound Pressure(dBA)94

* Vibration(m/S²)2.8

* MechanismTwin Hammer



* Other option: CH051320-TQ (with muffler)
