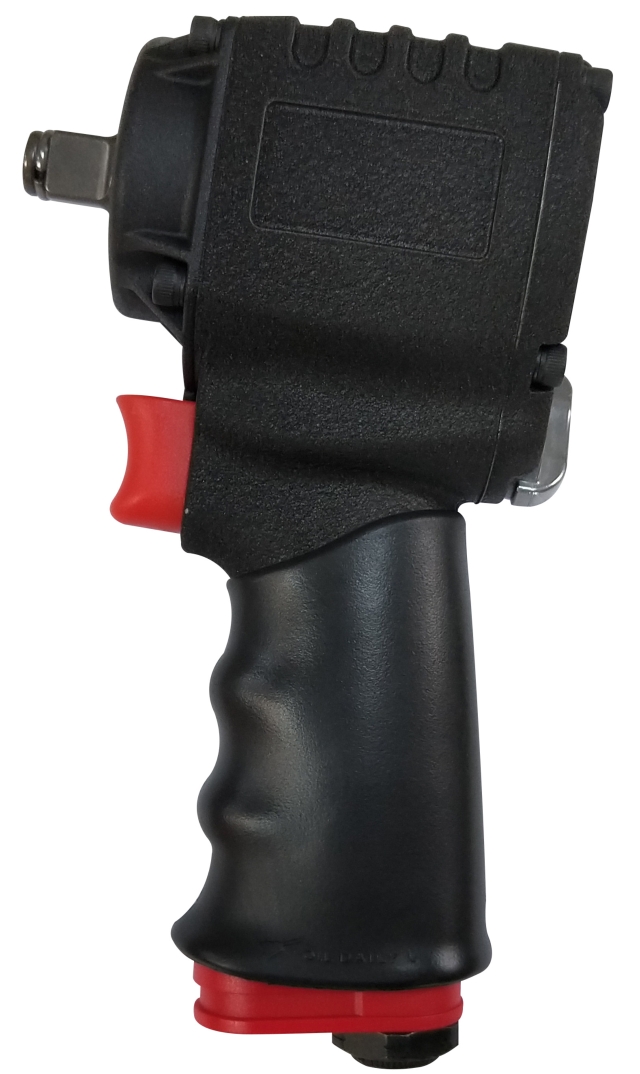

1/2”Dr. Super Duty Mini Air Impact Wrench





Item No.:CH051319-J

1/2”Dr. Super Duty Mini Air Impact Wrench



Specification:

* Square Drive(inch)1/2"

* Bolt Capacity(mm)16

* Working Torque ft.lb(Nm)180-400(244-542)

* Max. Torque ft.lb(Nm)700(949)

* Speed (RPM)9500

* Net Weight (Kg/Lb)1.45/3.19

* Length(mm)104

* Air Cons(m³/min) 0.21

* Air InIet(inch) 1/4"

* Hose Size(mm) 10

* Sound Pressure(dBA) 94

* Vibration(m/S²) 2.8

* MechanismJumbo Hammer



* Other option: CH051319-JQ (with muffler)
