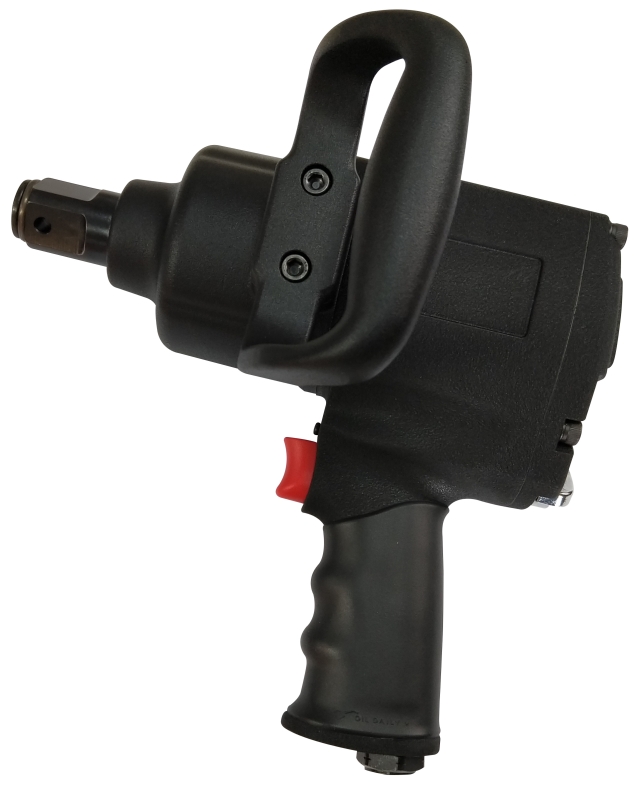

1”Dr. heavy Duty Air Impact Wrench







Item No.: CH051316

1”Dr. heavy Duty Air Impact Wrench


Specification:
* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 250-1600 ft.lb.(339-2170Nm)

* Max. torque: 1800ft.lb(2441 Nm)

*Speed: 4500rpm
* Net weight: 5.7kg

* Length: 240mm
* Air consumption: 0.32(m3/min)
* Air inlet: 3/8", hose size: 10mm
* Sound pressure: 97dBA
* Vibration: 6.1(m/s2)
