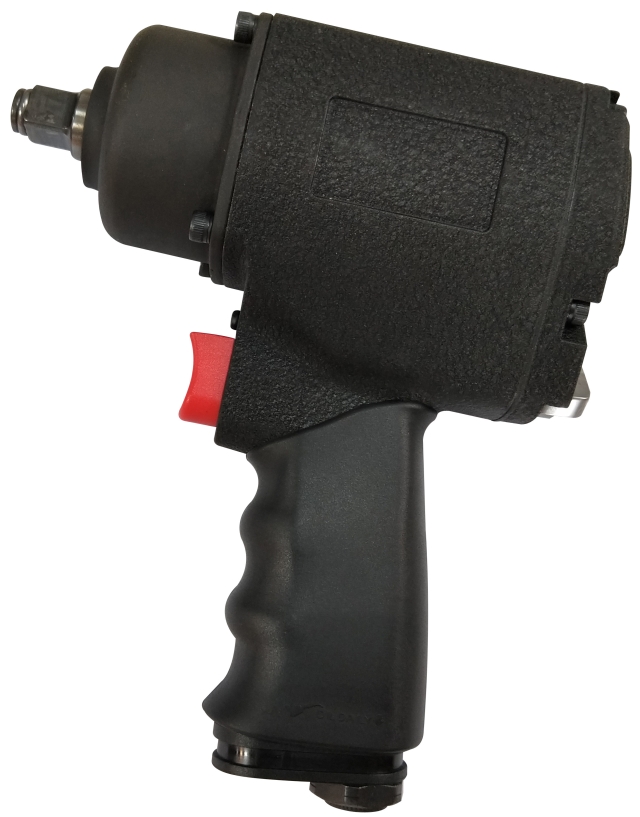

1/2” Dr. Heavy Duty Air Impact Wrench





Item No.: CH051307-L

1/2” Dr. Heavy Duty Air Impact Wrench (2” Anvil Extended)



Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 27mm

* Working torque: 244-746Nm(180-550ft.lb)

* Max. torque: 1085Nm(800Ft-Lb)
* Free speed: 7500rpm
* Net weight: 2.59kg

* Length: 215mm

* Air cons.:0.23 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 4.5 m/s2
